Introduction
Heat exchanger selection shapes far more than basic temperature control in HVAC and refrigeration systems. The right unit affects energy use, compressor workload, reliability, maintenance intervals, and total lifecycle cost, while a poor match can lead to pressure drop problems, fouling, corrosion, and avoidable downtime. This article explains the main factors engineers and buyers should compare, including thermal performance, fluid properties, operating conditions, material compatibility, and service demands. By the end, readers will have a practical framework for choosing a heat exchanger that fits both system requirements and long-term operating goals, making the technical details in the rest of the article easier to evaluate.
Why the Right Heat Exchanger Matters for HVAC
Selecting the right heat exchanger is a foundational engineering decision that dictates the performance, reliability, and operating economics of modern HVAC and refrigeration systems. Because commercial heating and cooling operations typically consume between 40% and 50% of a facility's total electrical load, the thermal transfer efficiency of these components directly impacts the bottom line. Engineers must move beyond generic sizing charts to evaluate exact thermodynamic profiles, fluid compatibilities, and lifecycle variables.
Energy efficiency, capacity, and lifecycle cost
Optimizing energy efficiency demands rigorous attention to the thermal transfer coefficient and surface area. By specifying a heat exchanger with superior convective heat transfer characteristics, system designers can lower the compressor's lift, directly improving the Coefficient of Performance (COP). In large chiller plants, reducing the condenser approach temperature by just 1°C can yield a 2% to 3% reduction in compressor energy consumption. Over a typical 15- to 20-year equipment lifecycle, the initial capital expenditure (CAPEX) premium for a high-efficiency unit is rapidly offset by substantial reductions in operating expenses (OPEX).
Operating failures and business risks
Suboptimal selection invites catastrophic operating failures and severe business risks. Under-sizing a unit leads to excessive fluid velocities and pressure drops, causing premature pump wear and potential flow-induced vibration failures. Conversely, incorrect material specification in aggressive fluid environments can result in rapid pitting or stress corrosion cracking. In industrial refrigeration applications, a refrigerant leak caused by heat exchanger failure can halt production entirely, incurring downtime costs that easily exceed $10,000 per day, alongside the heavy environmental and regulatory penalties associated with massive refrigerant loss.
Technical Criteria for Heat Exchanger Selection
Engineering the right heat exchanger requires a precise balance of thermodynamic and fluid dynamic variables. System designers must evaluate primary operational parameters against the specific physical properties of the refrigerants and secondary fluids involved.
Heat load, approach temperature, and pressure drop
Heat load calculations dictate the required surface area, but approach temperature and pressure drop define the operational boundaries. High-efficiency evaporators typically target an approach temperature of 1°C to 2°C to maximize heat absorption. However, achieving this tight temperature differential often requires increased internal baffling or closer plate spacing, which invariably increases the pressure drop. Best practices dictate keeping the water-side pressure drop strictly below 50 kPa (7.25 psi) to prevent exponential increases in circulating pump energy.
Materials, corrosion, fouling, and cleanability
Material selection is governed by fluid corrosivity, operating temperatures, and long-term maintenance requirements. While standard 304 stainless steel is sufficient for closed-loop treated water, environments with chloride concentrations exceeding 50 ppm require 316L stainless steel, and seawater cooling demands titanium plates or tubes. Fouling factors must also be integrated into the thermal resistance calculations; a standard design allowance of 0.000043 to 0.000086 m²K/W is typically added to account for mineral scaling or biological growth over time, ensuring the unit maintains rated capacity between cleaning intervals.
When to choose plate, shell-and-tube, brazed plate, or microchannel

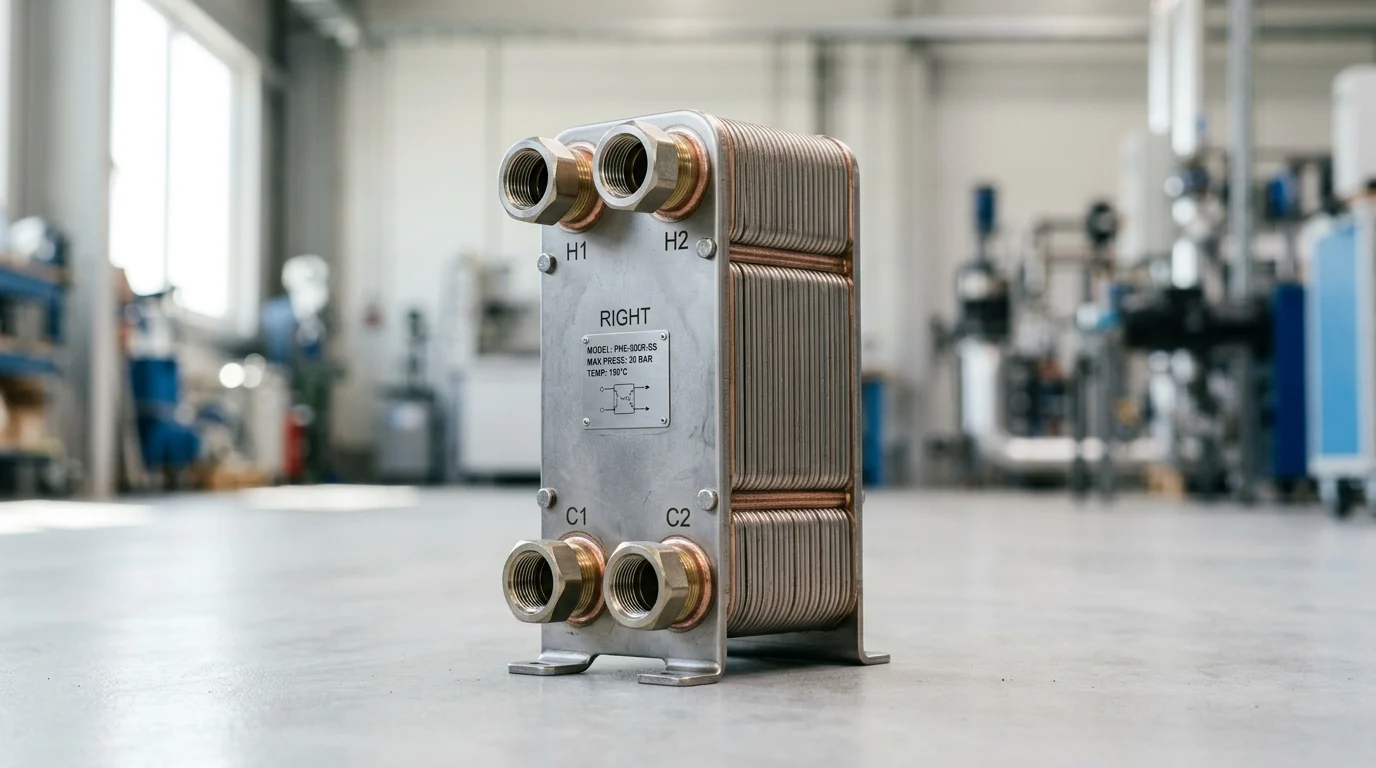

Selecting the correct geometry hinges on capacity requirements, footprint, and refrigerant volume constraints. Brazed Plate Heat Exchangers (BPHE) are highly favored in compact chillers and heat pumps due to their exceptional thermal density and zero-gasket design. Microchannel heat exchangers are increasingly specified for air-cooled condensers, as their flat-tube and louvered-fin geometry can reduce the total system refrigerant charge by 30% to 40% compared to traditional fin-and-tube designs. For large-scale industrial applications exceeding 2,000 kW or environments with high particulate loads, robust shell-and-tube designs remain the standard due to their mechanical cleanability and high-pressure tolerance.
Comparing Heat Exchanger Types and Suppliers
Evaluating heat exchanger topologies requires balancing thermal density against long-term serviceability and procurement logistics. Sourcing the right heat exchanger involves scrutinizing both the physical architecture of the unit and the manufacturing pedigree of the supplier.
Performance and maintenance comparison points
Different architectures present distinct trade-offs in performance, pressure limits, and maintenance accessibility. Gasketed plate heat exchangers offer modular expandability and easy disassembly for mechanical cleaning, but are generally limited to operating pressures below 25 bar. Conversely, brazed plate designs can withstand up to 45 bar but cannot be mechanically cleaned, necessitating chemical-in-place (CIP) protocols.
| Heat Exchanger Type | Typical Capacity Range | Max Operating Pressure | Fouling Resistance | Maintenance / Cleanability |
|---|---|---|---|---|
| Gasketed Plate | 50 kW – 10,000+ kW | Up to 25 bar | Low to Medium | Excellent (Mechanically cleanable) |
| Brazed Plate (BPHE) | 5 kW – 1,000 kW | Up to 45 bar | Low | Poor (Chemical cleaning only) |
| Shell-and-Tube | 500 kW – 20,000+ kW | Up to 150+ bar | High | Good (Tube-side mechanical) |
| Microchannel | 10 kW – 500 kW | Up to 45 bar | Medium | Fair (External washing) |

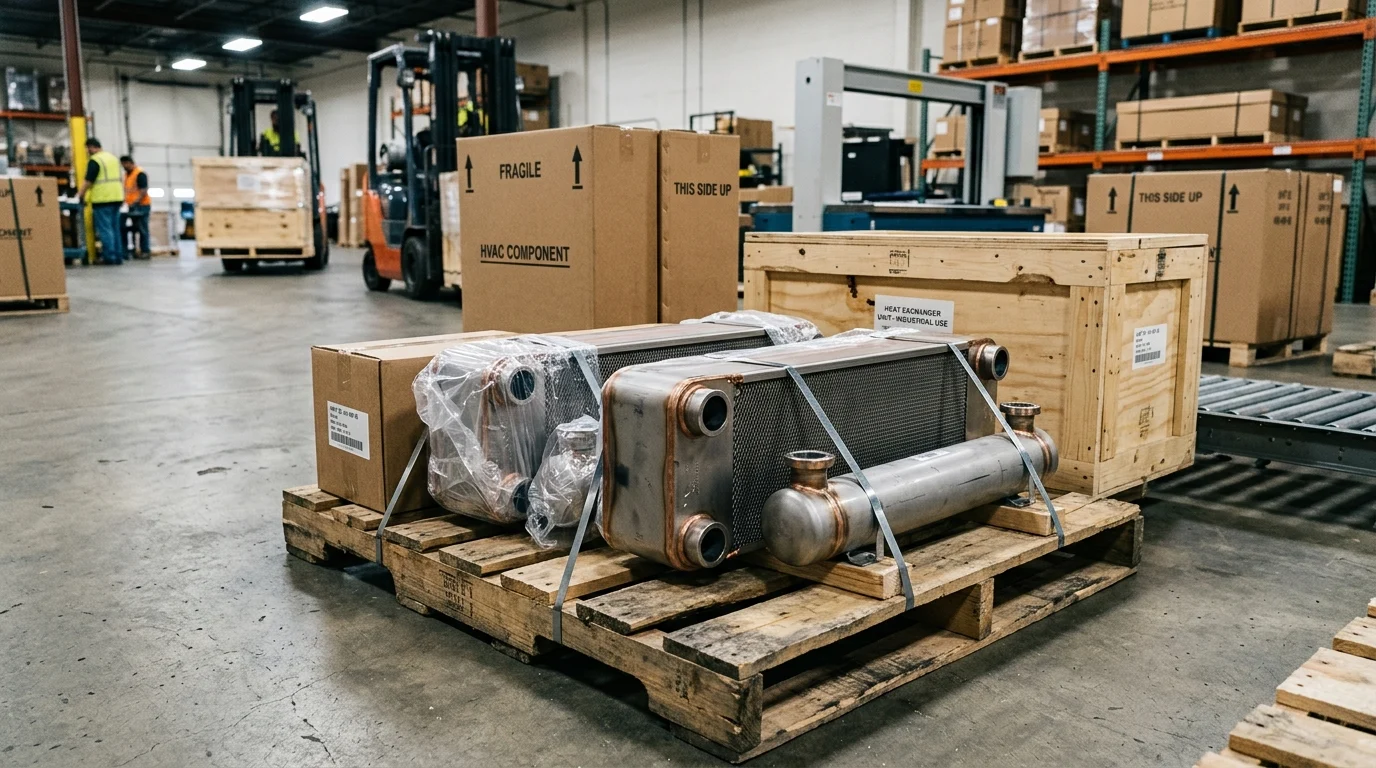

Supplier quality, testing standards, and lead times
Vetting supplier capabilities is as critical as the hardware specification. Premium manufacturers adhere to stringent quality frameworks, holding certifications such as ISO 9001 and AHRI Standard 400 for liquid-to-liquid applications. Quality control protocols should include rigorous helium leak testing, with acceptable leak rates typically capped at 1 × 10⁻⁵ mbar L/s to guarantee hermetic integrity. Furthermore, project managers must align specifications with supplier lead times; standard off-the-shelf BPHEs may ship in 4 to 6 weeks, whereas custom-engineered shell-and-tube vessels fabricated from specialized alloys frequently demand lead times of 16 to 24 weeks.
Compliance and Installation Factors
Integration into modern HVAC and refrigeration systems introduces stringent mechanical, environmental, and regulatory constraints. Selecting the right heat exchanger requires verifying that the component will not only perform thermodynamically but also safely integrate into the physical plant.
Codes, pressure vessel rules, and refrigerant regulations
Compliance with international pressure vessel codes is non-negotiable for system safety and legal operation. Depending on the jurisdiction, heat exchangers must adhere to the ASME Boiler and Pressure Vessel Code (BPVC) Section VIII in North America or the Pressure Equipment Directive (PED) 2014/68/EU in Europe. The ongoing phase-down of high-GWP refrigerants has introduced significant engineering challenges; transitioning to natural refrigerants like transcritical CO2 (R-744) requires gas coolers and evaporators capable of withstanding extreme burst pressures exceeding 130 bar, necessitating specialized heavy-wall geometries and advanced brazing techniques.
Space, vibration, water quality, and piping constraints
Physical installation constraints often dictate the final technology choice. Gasketed and brazed plate heat exchangers can reduce the required mechanical room footprint by up to 80% compared to equivalent shell-and-tube models, a critical advantage in dense urban retrofits. Piping configurations must account for fluid velocity, keeping flow rates between 1.0 and 3.0 m/s to prevent erosion-corrosion while maintaining sufficient turbulence to inhibit particulate settling. Additionally, structural engineers must implement adequate vibration isolation, particularly for microchannel coils mounted on compressor racks, to prevent fatigue failure of the delicate aluminum headers over a 15-year operational lifespan.
A Practical HVAC Heat Exchanger Selection Process
Standardizing the specification process ensures consistent system performance and mitigates costly procurement risks. A methodical engineering workflow transitions the project from theoretical thermodynamic requirements to a commissioned, fully operational asset.
Step-by-step selection workflow
A robust selection workflow requires sequential validation of thermal, mechanical, and economic parameters. Engineers begin by defining the exact heat load, mass flow rates, and specific heat capacities of the working fluids.
| Phase | Key Parameters | Typical Target Values | Output / Deliverable |
|---|---|---|---|
| 1. Thermodynamic Profiling | LMTD, Approach Temp, Heat Load | 1–3°C Approach, >100 kW Load | Required Surface Area (m²) |
| 2. Hydraulic Optimization | Flow Velocity, Pressure Drop | 1–3 m/s, <50 kPa Drop | Channel geometry / Baffle spacing |
| 3. Material Selection | Chloride levels, pH, Temp limit | <50 ppm Cl (for 304 SS), pH 7–9 | Alloy specification & Gasket material |
| 4. Safety Factor Sizing | Fouling factor, Over-surfacing | 10–15% excess surface area | Final Model Selection |
By systematically calculating the Logarithmic Mean Temperature Difference (LMTD) and applying a 10% to 15% over-surfacing safety factor, designers ensure the unit will meet peak load demands even as minor fouling accumulates over its service life.
Final approval and commissioning criteria
Final approval hinges on comprehensive Factory Acceptance Testing (FAT) and rigorous site commissioning. Before shipment, the heat exchanger must undergo hydrostatic testing at 1.3 to 1.5 times its maximum allowable working pressure (MAWP) to certify structural integrity. During field commissioning, technicians must establish baseline performance metrics, logging the inlet and outlet temperatures, flow rates, and exact pressure drops. These initial commissioning values serve as the critical benchmark for predictive maintenance algorithms, alerting facility operators to the precise moment when chemical cleaning or gasket replacement is required to restore optimal efficiency.
Key Takeaways
- The most important conclusions and rationale for Right Heat Exchanger
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
How do I choose the right heat exchanger size for HVAC or refrigeration systems?
Start with the actual heat load, target approach temperature, and allowed pressure drop. For OEM projects, Senjun can review these parameters and match the exchanger to your refrigerator, chiller, dehumidifier, or cold room application.
When should I use a brazed plate heat exchanger?
Use BPHEs when you need compact size, high thermal efficiency, and reliable sealing in chillers, heat pumps, or refrigeration units. They fit well where space is limited and refrigerant-side performance is critical.
Which material is better for corrosive cooling media?
Choose 304 stainless for treated closed-loop water, 316L for higher chloride exposure, and titanium for seawater or very aggressive fluids. Correct material selection helps prevent pitting, leaks, and early replacement.
Why is pressure drop important when selecting a heat exchanger?
Excessive pressure drop increases pump energy use and can reduce system efficiency. A practical target is to keep water-side pressure drop under 50 kPa unless the system is specifically designed for higher resistance.
What should I check when comparing heat exchanger suppliers?
Check product range, quality control, engineering support, lead time, and customization ability. For B2B buyers, Senjun’s portfolio covers condensers, evaporators, unit coolers, and refrigeration parts with project-based technical support.
